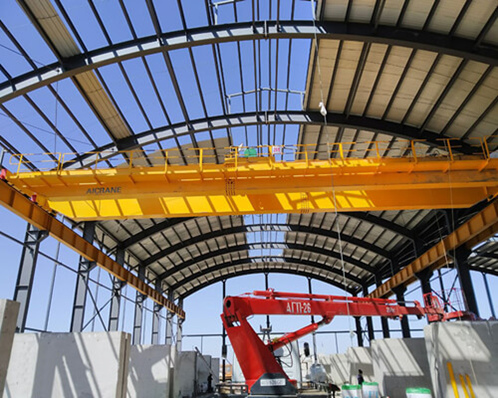

Overhead cranes with steel structures are commonly used in a variety of industries for heavy lifting and material handling tasks. These cranes have a steel frame that supports the hoist, trolley, and load. To ensure the safety and efficiency of overhead crane operations, it is important to understand the load capacity and weight limits of these cranes.
Load Capacity
Load capacity refers to the maximum weight that a crane can safely lift and move. Load capacity is a critical factor in overhead crane design and is determined by several factors including the type of steel structure, crane design, load type, and operating conditions.
• Type of Steel Structure: The strength and stiffness of the steel structure play a significant role in the load capacity of an overhead crane(grua puente). The type of steel used in the crane construction, as well as its thickness, affects the overall strength of the crane.
• Crane Design: The design of the crane, including the size and shape of the beams, hoist, and trolley, affects its load capacity. Cranes that are designed with larger beams and hoists generally have a higher load capacity.
• Load Type: The type of load being lifted, including its weight and distribution, affects the load capacity of an overhead crane. For example, a load with a high center of gravity requires a higher load capacity crane to ensure stability during operation.
• Operating Conditions: The operating conditions of the crane, such as the speed and frequency of use, also play a role in determining the load capacity. Cranes that are used frequently at high speeds will typically have a lower load capacity.
Weight Limits
• Weight limits refer to the maximum weight that can be safely lifted and moved by an overhead crane(puente grua birrail). Weight limits are determined by several factors including the strength of the steel structure, load distribution, operating environment, and safety factors.
• Steel Structure Strength: The strength of the steel structure is a critical factor in determining the weight limits of an overhead crane. The type of steel used in the construction, as well as its thickness, affects the overall strength of the crane.
• Load Distribution: The distribution of the load being lifted affects the weight limits of an overhead crane. A load with a high center of gravity requires a higher weight limit crane to ensure stability during operation.
• Operating Environment: The operating environment of the crane, such as temperature, humidity, and wind speed, can affect the weight limits of an overhead crane. Cranes used in harsh environments, such as high temperatures, require a lower weight limit to ensure safety. my website: https://aicrane.cl/puente-grua-monorriel/
• Safety Factors: Safety factors, such as the margin of safety, also play a role in determining the weight limits of an overhead crane. Cranes with a higher margin of safety will typically have a lower weight limit to ensure safety during operation.
Calculating Load Capacity and Weight Limits
There are several methods for calculating the load capacity and weight limits of overhead cranes with steel structures. Standard formulas, computer simulations, and physical testing are all commonly used to determine the load capacity and weight limits of these cranes.
Standard Formulas: Standard formulas, such as beam load capacity formulas, can be used to calculate the load capacity and weight limits of overhead cranes of Aicrane. These formulas take into account the strength and stiffness of the steel structure, crane design, load type, and operating conditions.
Computer Simulation: Computer simulations can be used to calculate the load capacity and weight limits of overhead cranes with steel structures. These simulations take into account the strength and stiffness of the steel structure, crane design, load type, and operating conditions.
